Project Description

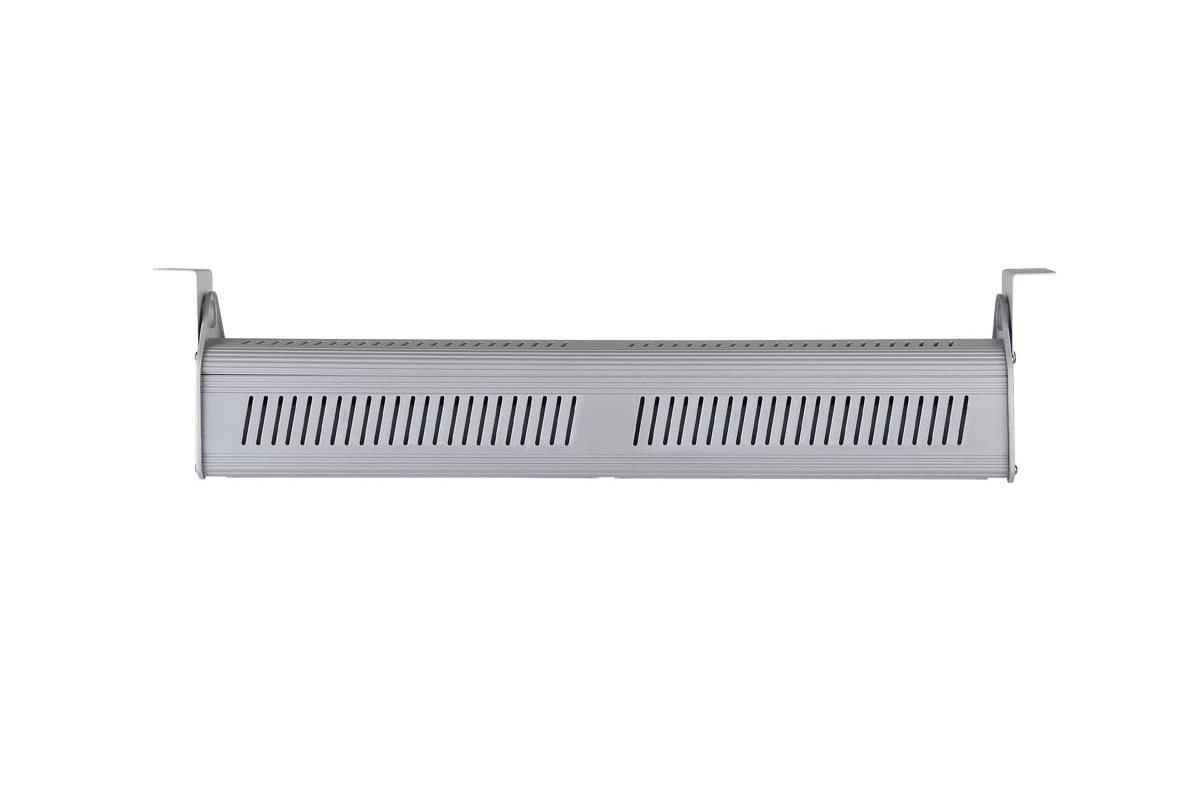

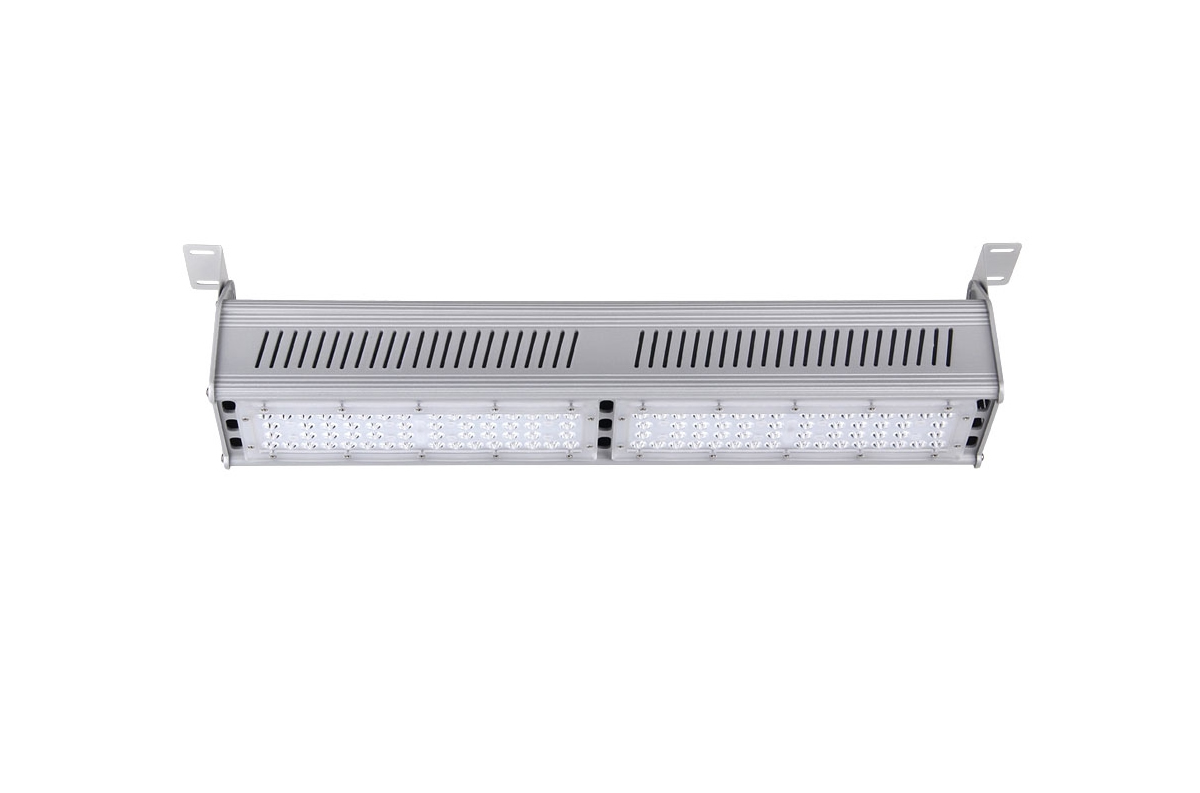

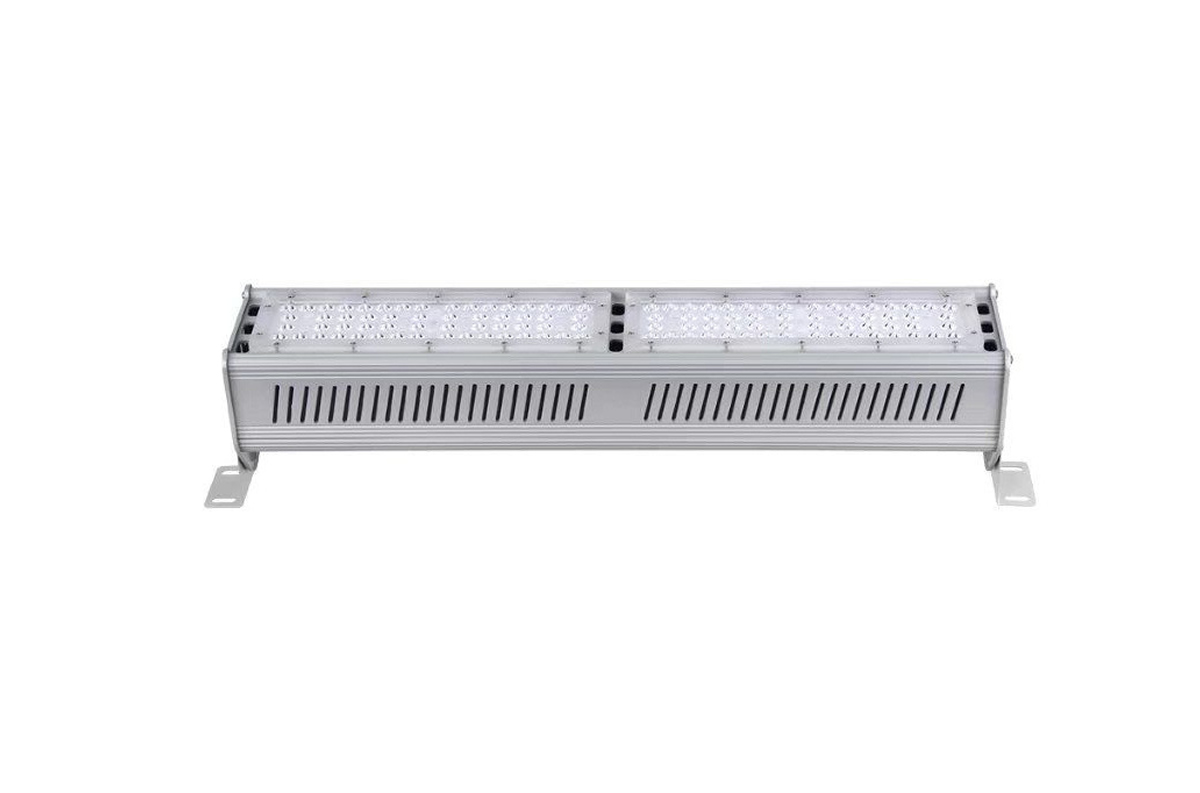

Product Code: URANUS 100W LED Linear Highbay | HBL-F100W

Key Features

  • 3D Heat dissipation and wind tunnel design
  • IP65, waterproof connectors for cable
  • High Lumen output (130lm/W)
  • Beam angle adjustable, screw lock mounting
  • Wide option of Lens available
  • Long life time, rated for over 55,000hrs
  • Quality Meanwell Driver
  • Compact Size

Product Description

URANUS LED Linear Highbay increase Visibility with Brighter, More Efficient Lighting

Better lighting can reduce eye-fatigue, improve visibility, and transform the appeal of a space, from warehouses to big-box stores.

Designed for easy mounting (hook, cable, or surface mount), these strong, lightweight, fully-assembled fixtures replace existing fluorescent or MH high-bays and provide superior uniformity for high visibility. The efficiency of Linear High Bays reduces energy consumption by 50% over existing fluorescent fixtures, increasing the return on your lighting investment. Moreover, these LED high bays are qualifying them for premium rebates. And with 0-10V dimming, our Linear High Bays can reduce energy costs even further. With a 55,000-hour rated life and 5-year warranty, our Linear High Bays significantly reduce your long-term operational and maintenance costs.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 12000lm PHILIPS SMD3030 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.95 85-265 V AC

Operating Details

Power Ambient Temperature Range
100W -40 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC White,Silver,Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 30°/60°/90°/60*120°/80*155°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 67 x 19 x 22 cm 4 kg

Applications

Mechanical Dimensions (Unit mm)

size-100w-highbay-linear-lighting

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
