Project Description

Product Code: JUPITER 50W LED Flood Light | FP-A50W

Key Features

  • Ultra slim elegance housing design, Environment friendly
  • Integrated design of driver box, reduce the wind resistance
  • Clamps with G-buckle to assure it stay in place & donot get lose
  • Industrial grate silicone gasket assuring high IP grade
  • High Lumen output(UP to 130lm/W)
  • Durable tempered glass front
  • Long life time, rated for over 55,000hrs
  • Waterproof IP65

Product Description

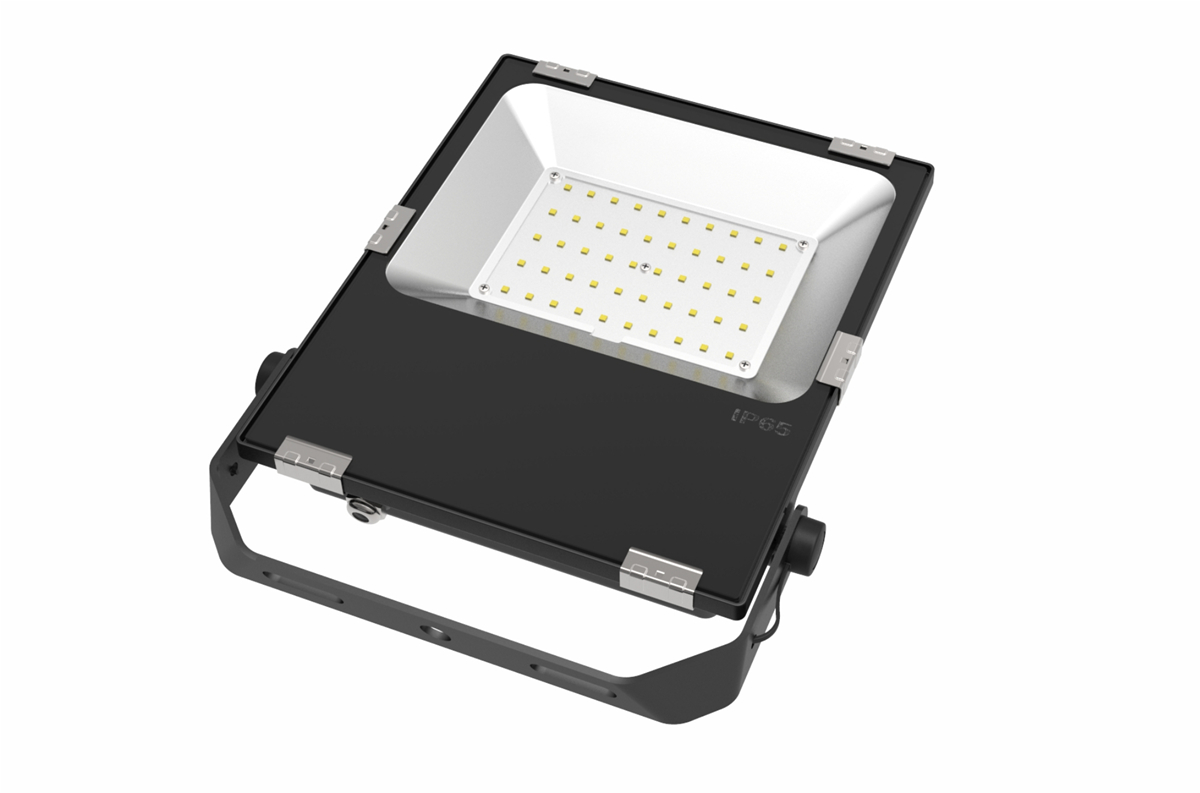

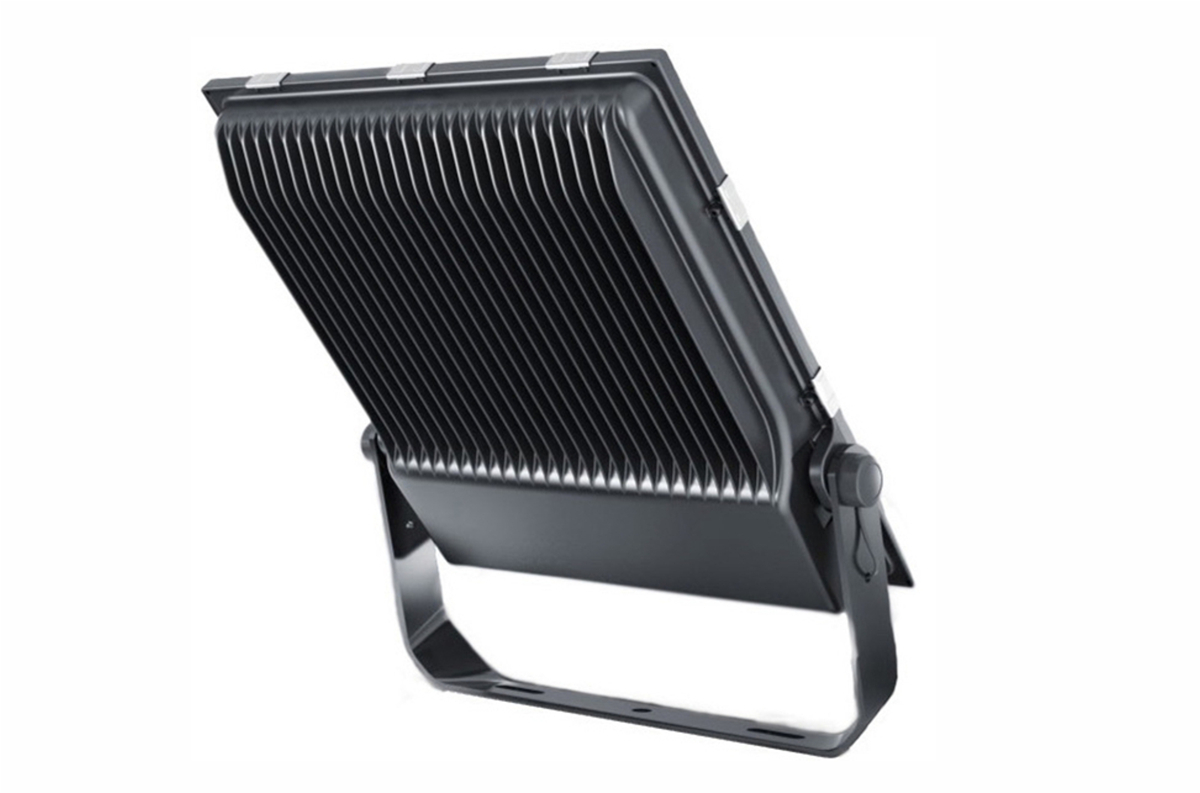

Cutting-edge optical design and leading-edge performance JUPITER LED Flood light

This JUPITER Large outdoor Led flood Light is good for illuminating areas that require a lot of light. This commercial led fixture is heavy duty, slim designed and light weight. But can hold up to high winds and severe weather. Swivel mount option allows you to pole mount or surface mount on buildings.

Typically replacing the Sodium lamp or halogen flood light, the JUPITER LED Floodlight can offer energy savings of up to 90%. It can be used singularly or in groups to provide lighting for applications ranging from recreation area lighting to warehouse lighting, sign lighting, building lighting, car park lighting and perimeter fence lighting.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 6000lm PHILIPS SMD3030 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.97 85-265 V AC

Operating Details

Power Ambient Temperature Range
50W -20 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + Tempered Glass Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 120°

Packing Details

Quantity Per Carton Carton Size Carton Weight
8 pcs 39 x 29 x 51 cm 16.5 kg

Applications

Mechanical Dimensions (Unit mm)

50watt-led-flood-light-waterproof-for-outdoor-lighting

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
