Project Description

Product Code: PLUTO 40W 1200MM LED Tri-Proof Light | TP-P40W

Key Features

  • Unique design that can replace traditional fixture lamp
  • Special made that can be fire-proof, water-proof and dust-proof

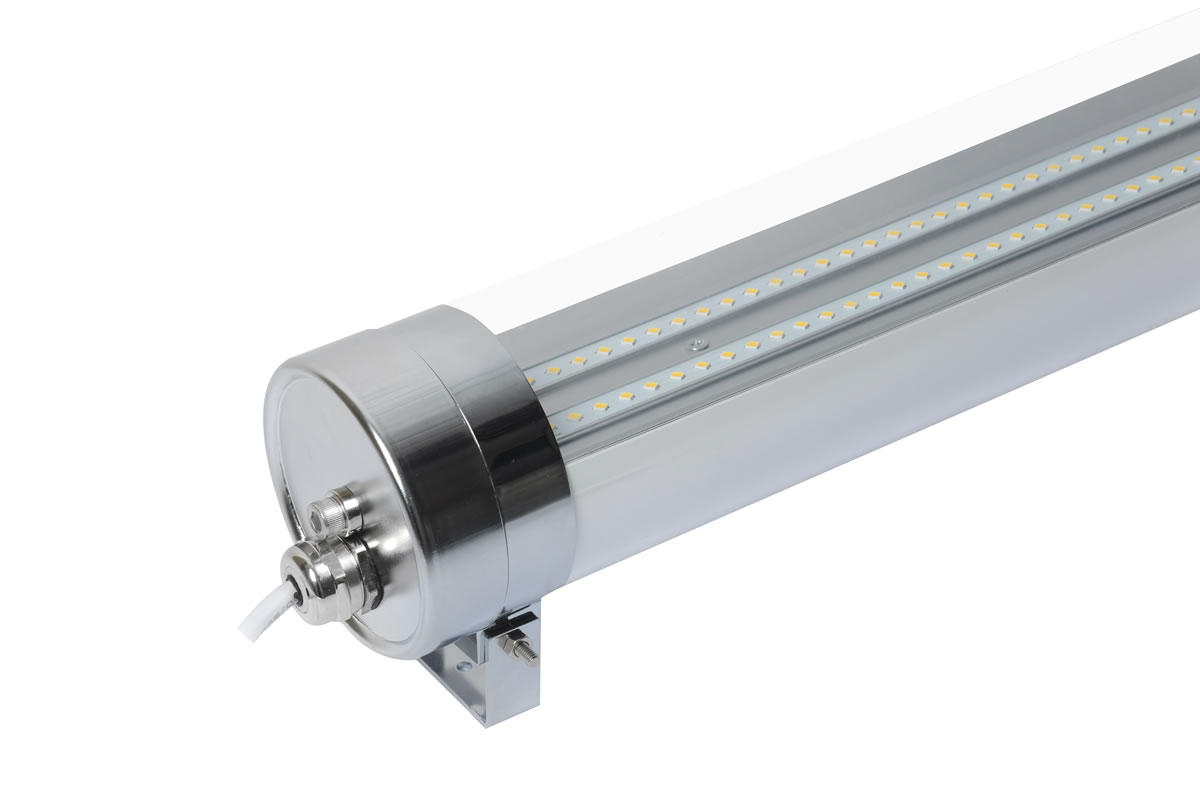

  • #304 Stainless Steel end cap

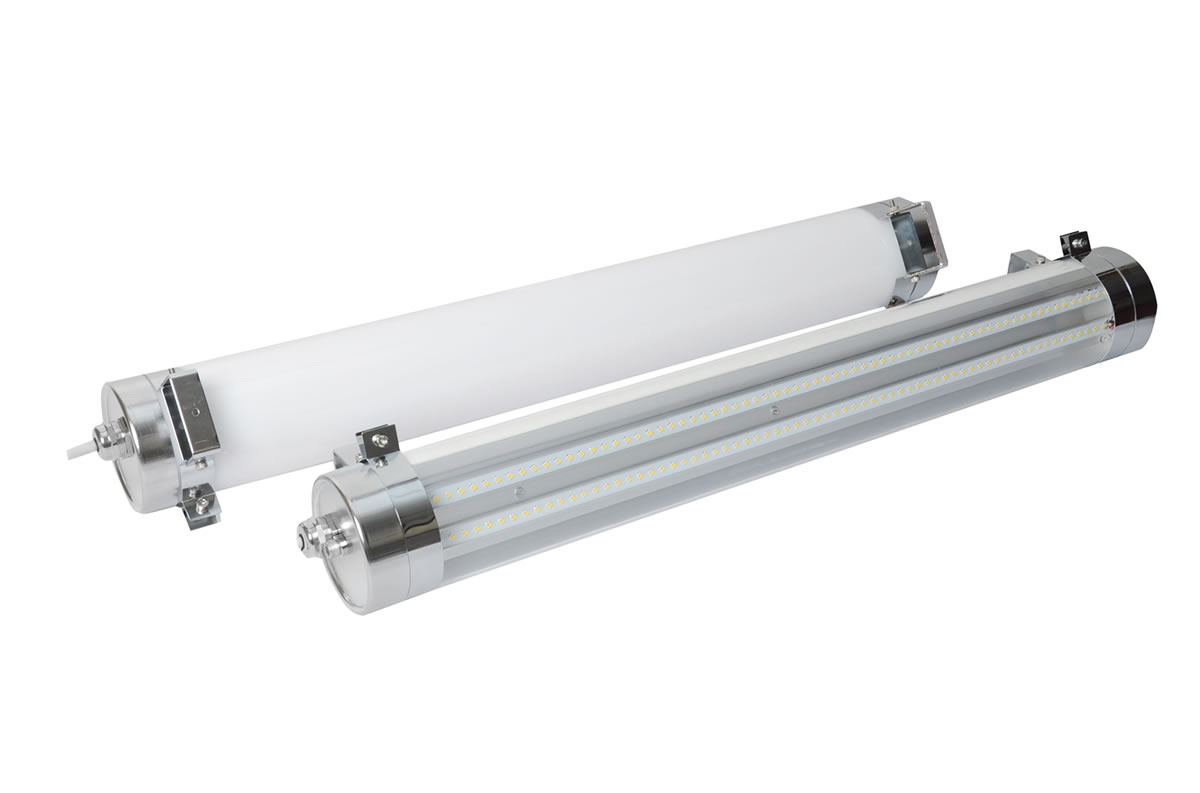

  • Both PMMA & PC cover available
  • IP69K, IP67, IK10 rated
  • DALI/0-10V/PWM/Triac Dimming available
  • Ideal for Parking Lot, Warehouse and Workshop

Product Description

The PLUTO LED Tri-Proof Light is a light weight, all-purpose Low–Mid Bay light fixture with versatile mounting options. It is designed to replace fluorescent fixtures of much higher wattages for multiple applications. This ultra-energy efficient high output luminaire consumes low wattage and provides comfortable uniform lighting in most working environments.

The IP69K is the highest level of this protection and is designed for applications where water jets are under high pressure and high temperature are used for specific wash-downs. This will also include special sensitization and chemical cleaning. In some instances, the cleaning process involves very intensive requirements for industries such as Food & Beverage as well as the vehicle industry.


Lighting Performance

Colour Temperature Lumen Output LED Quantity CRI Minimum Lifetime
3000K, 4000K, 6000K 5300lm 336pcs >80 50,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Tridonic Constant Current >0.95 220-240V AC

Operating Details

Power Ambient Temperature Range
40W -20 to +50 °C

Physical Details

Material Cover Ingress Protection
PMMA / PC Clear / Milky IP69K, IP67


LED Colours Optics
Warm White, Neutral White, Cold White 120°

Packing Details

Quantity Per Carton Carton Size Carton Weight
6 pcs 135 x 30 x 45 cm 14.5 kg


Mechanical Dimensions (Unit mm)


Available Colours




Installation Options

Control Options



Ingress Protection
