Project Description

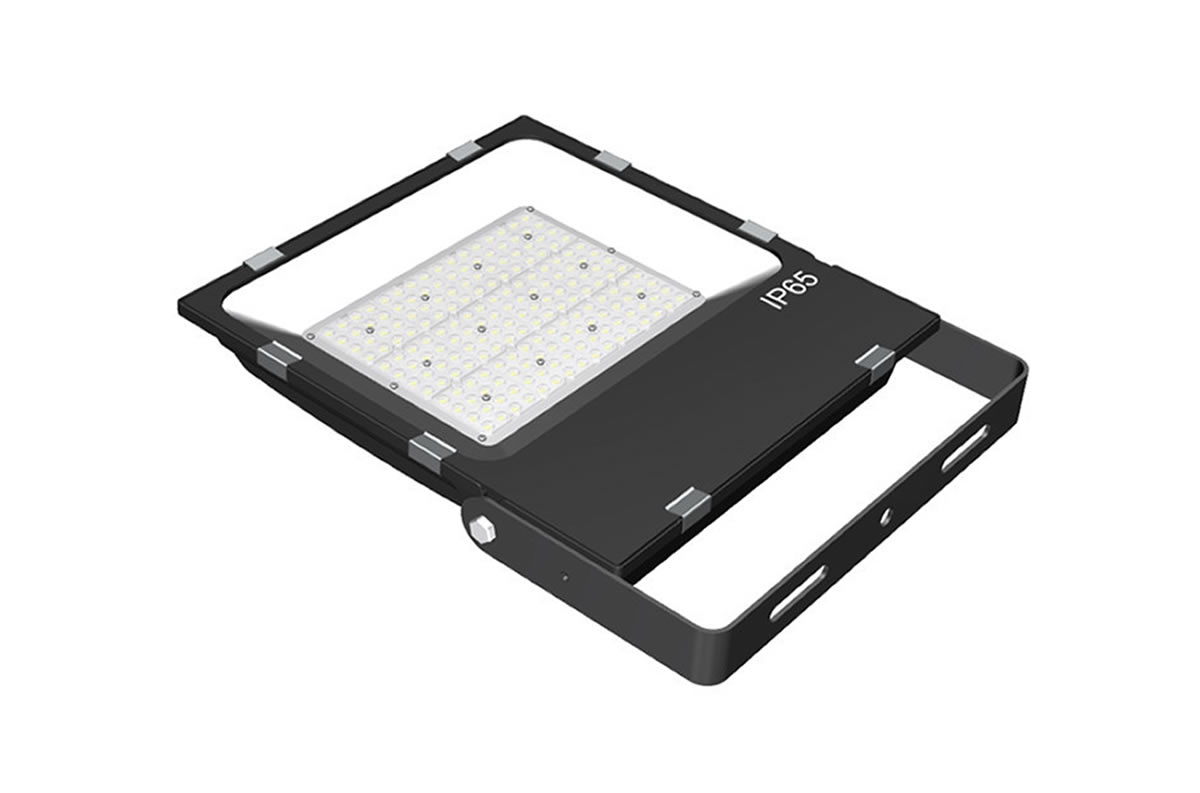

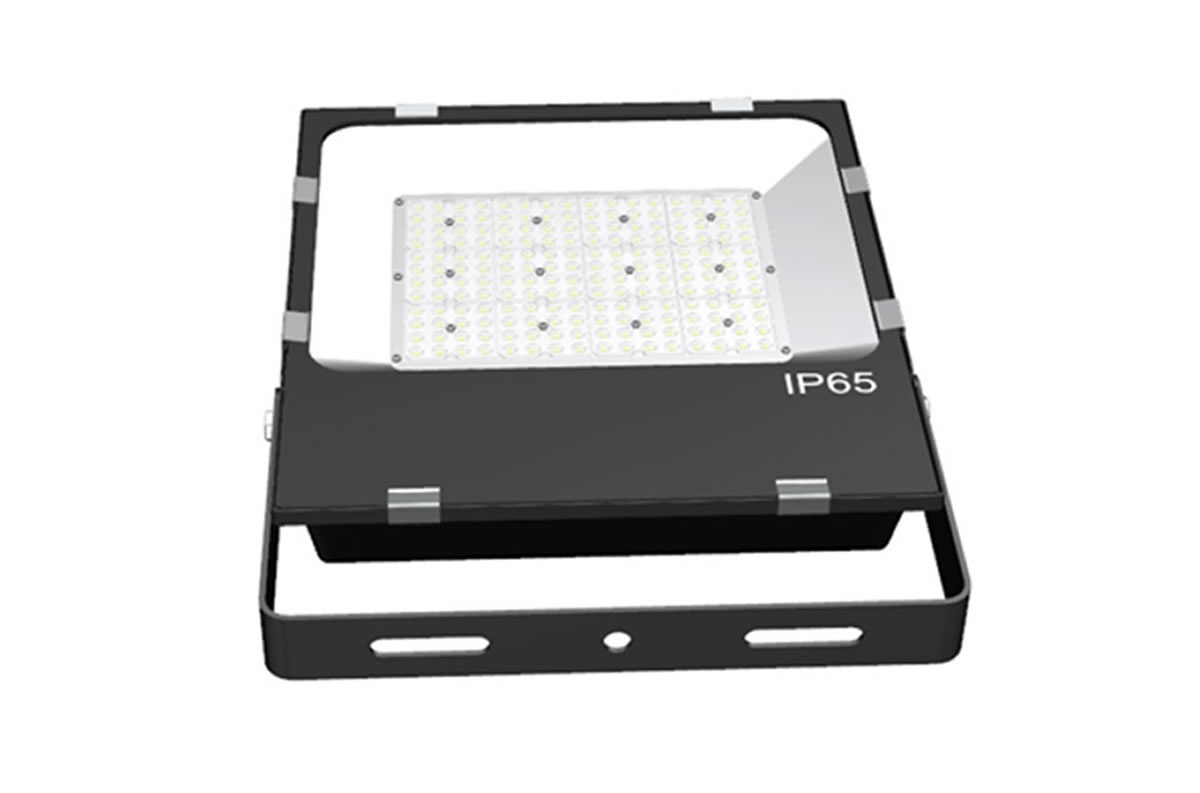

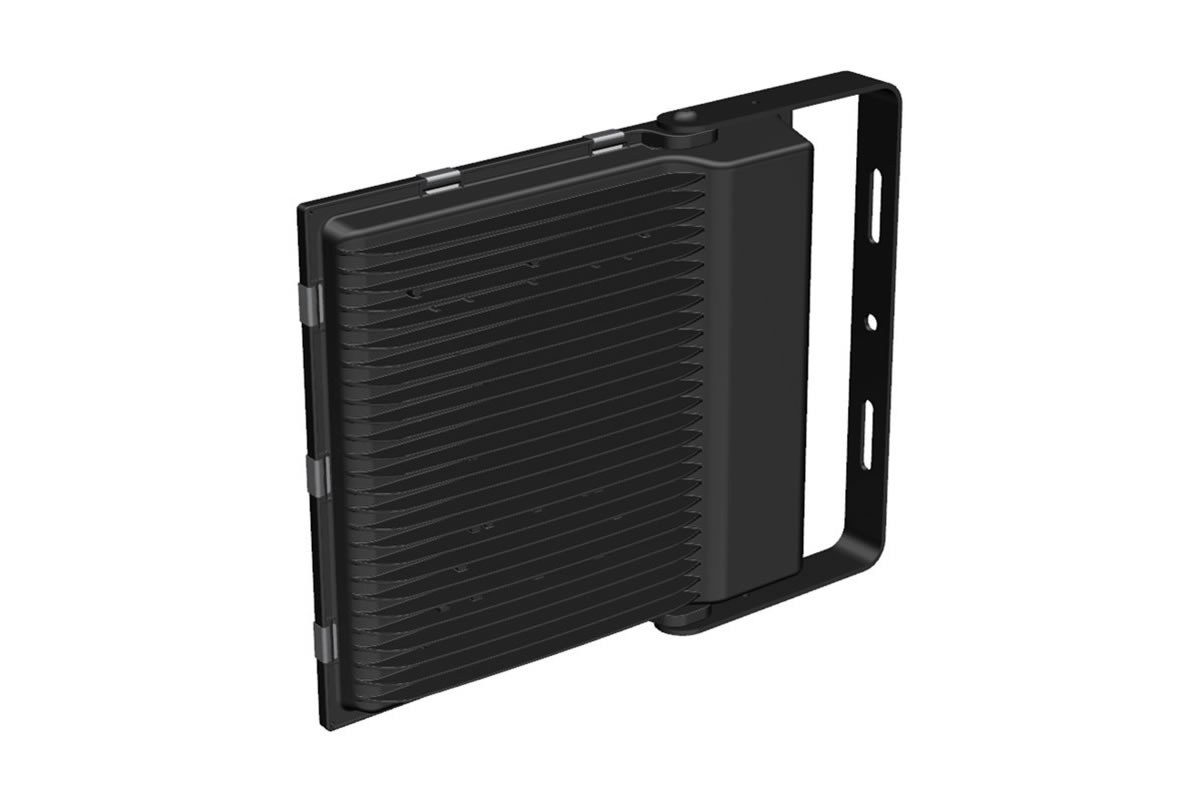

Product Code: JUPITER 150W LED Flood Light | FP-K150W

Key Features

  • Ultra slim elegance housing design, Environment friendly
  • Integrated design of driver box, reduce the wind resistance
  • Electroplating reflector, high light reflector rate and shining
  • Industrial grate silicone gasket assuring high IP grade
  • 270 degree adjustable brackets, easy for installation and fix
  • Durable tempered glass front
  • Long life time, rated for over 55,000hrs
  • Waterproof IP65

Product Description

This JUPITER Large outdoor Led flood Light is good for illuminating areas that require a lot of light. This commercial led fixture is heavy duty, slim designed and light weight. But can hold up to high winds and severe weather. Swivel mount option allows you to pole mount or surface mount on buildings.

Typically replacing the Sodium lamp or halogen flood light, the JUPITER LED Floodlight can offer energy savings of up to 90%. It can be used singularly or in groups to provide lighting for applications ranging from recreation area lighting to warehouse lighting, sign lighting, building lighting, car park lighting and perimeter fence lighting.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 18000lm PHILIPS SMD3030 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.97 85-265 V AC

Operating Details

Power Ambient Temperature Range
150W -20 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + Tempered Glass Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 30°/60°/90°/70*150°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 53 x 46 x 16 cm 6 kg

Applications

Mechanical Dimensions (Unit mm)

size-150w-projector-flood-led-lighting

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
