Project Description

Product Code: ALCOR 600W LED Stadium Lights | SAS-A600W

Key Features

  • High Impact Resistance IK10
  • High Protection Level up to IP66
  • Anti 17-level Wind Power
  • High Vibration Resistance
  • Surge Suppression Protection
  • Intelligent Control
  • Extraordinary Thermal Management
  • High Thermal Conductivity
  • Slim and Lightweight

Product Description

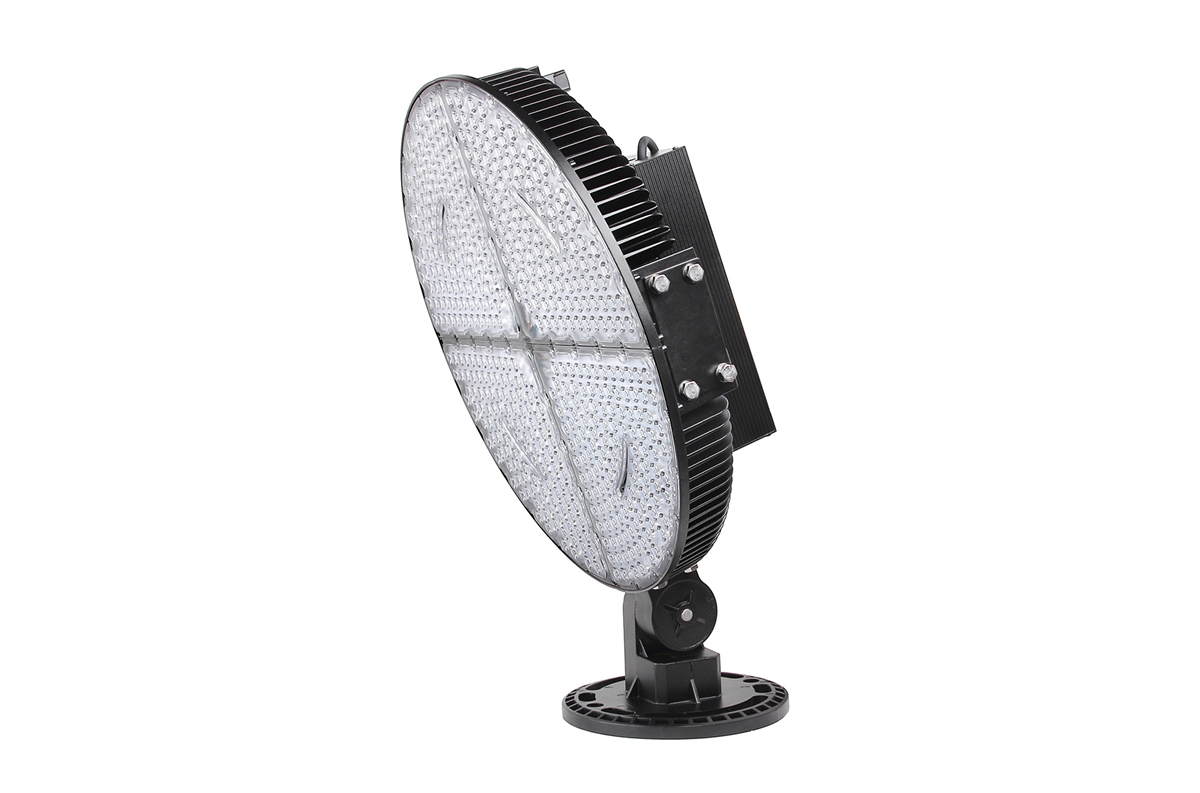

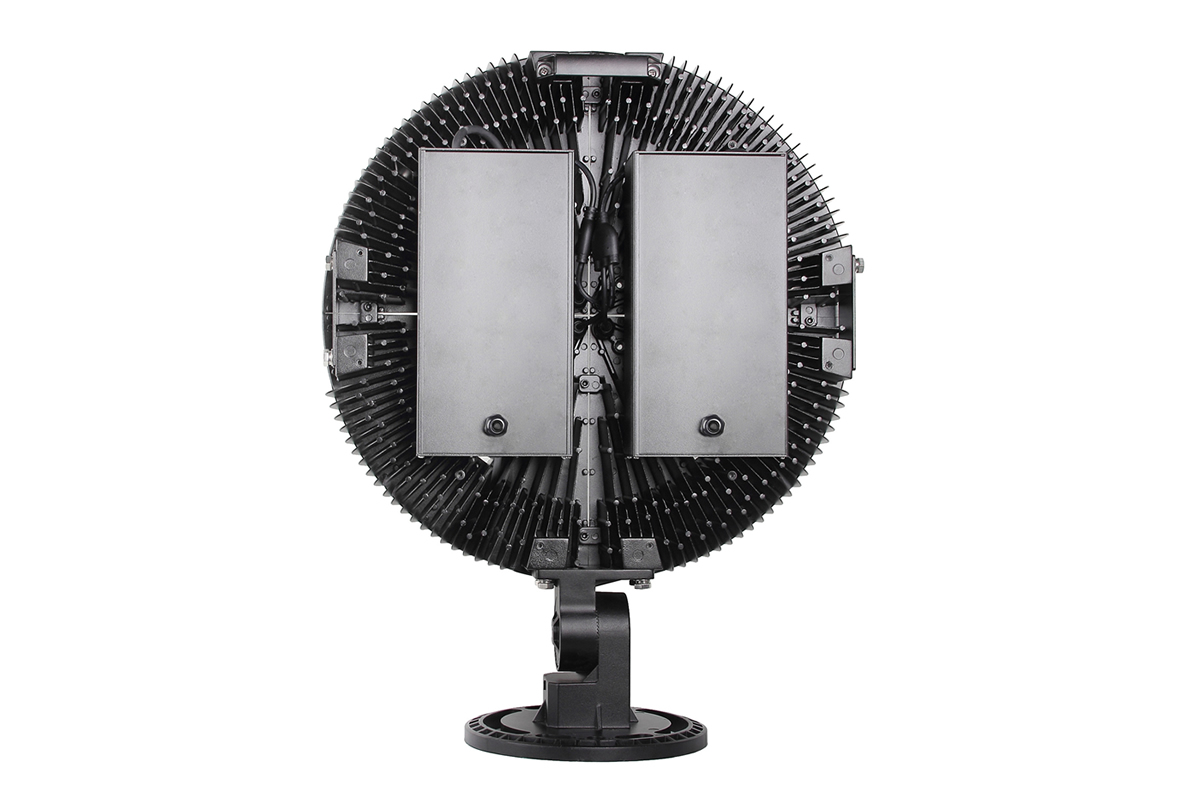

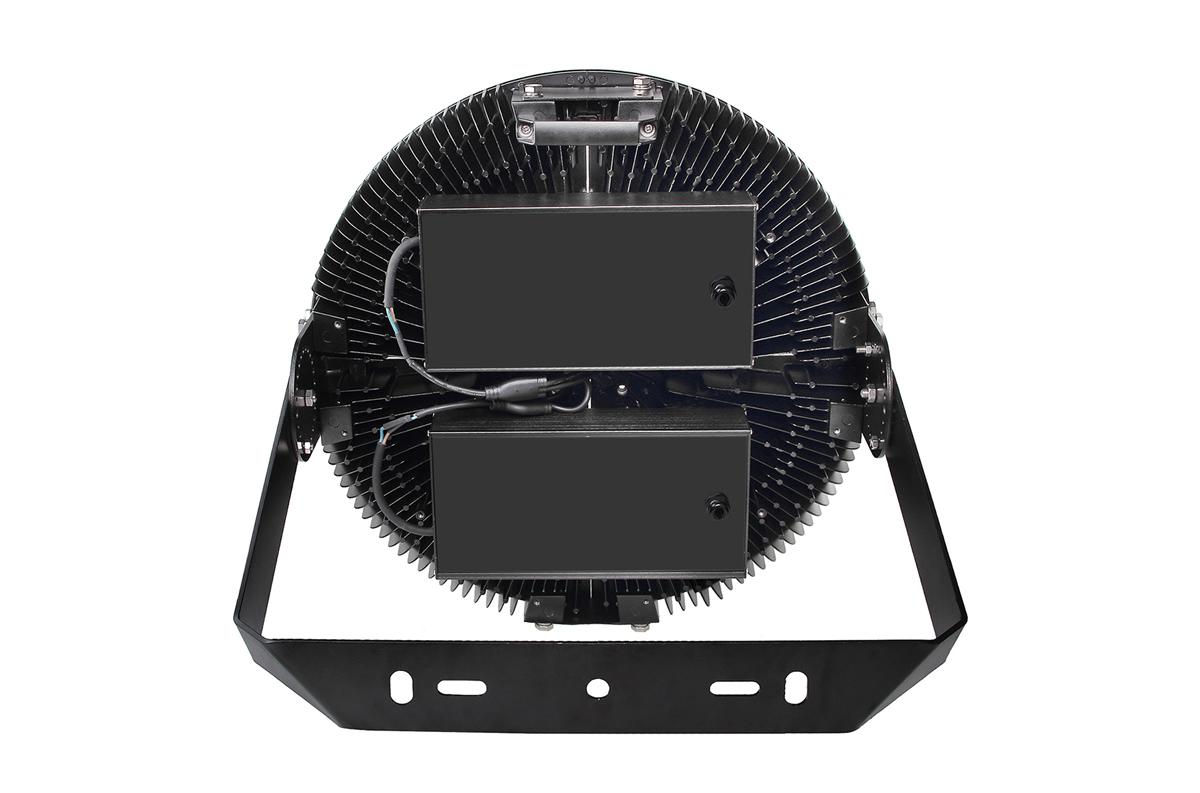

Technologically Advanced, low profile all-purpose ALCOR LED Stadium Lights

ALCOR LED Stadium Lights – the perfect high efficiency lighting solution for any sport application. The high quality of light emitted from LED sports lighting fixtures allows for an improved fan experience and increased safety. In addition, LEDs offer tremendous energy savings, longer lifespans, and other benefits.

LED Stadium Lights are designed to replace 400W to 2000W Metal Halide and HPS stadium lights. We have Qualified LED stadium lights which makes them eligible for rebates through your utility company. Stadium lights have so many applications over and above lighting up outdoor sports areas. They can be used for security lighting, flood lighting and on top of large poles.

Replace your old outdoor area lights, ballpark or stadium lights with a high efficiency LED area light. Save money and replace bulbs less often with a 100,000 hour rated LED. Fixture is also ideal for new installations. Light up an area of your parking lot, walkways and sports court for safety and aesthetics.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 84000lm PHILIPS SMD5050 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.95 85-265 V AC

Operating Details

Power Ambient Temperature Range
600W -40 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 10°, 25°, 40°, 60°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 165 x 30 x 45 cm 19.5 kg

Applications

Mechanical Dimensions (Unit mm)

size-600w-led-sports-stadium-lighting

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
